4A210-06/08, 4A220-06/08 AIRTAC 4A200Series 5/2 way Air Valve 1/8" 1/4"
The AIRTAC 4A200 Series 5/3 Air Valve is a robust pneumatic control valve featuring a sliding spool structure that ensures excellent sealing performance and highly sensitive response. This 5-port, 3-position valve offers three distinct center functions for flexible control of double-acting actuators and is designed to operate without the need for additional lubrication. Its internal components are manufactured using specialized processing techniques for low friction resistance, low starting pressure, and an extended service life. The valve can be integrated with a manifold base to create a compact valve group, significantly saving installation space, and is intended for use with filtered air (40μm) within an operating pressure range of 0.15 to 0.8 MPa.
Order Codes:
| Type | Port Size | Positions | Valve Type |
| 4A230C-06 | 1/8" | 5/3 way | Double Air Control Closed Center |
| 4A230E-06 | 1/8" | 5/3 way | Double Air Control Exhaust Center |
| 4A230P-06 | 1/8" | 5/3 way | Double Air Control Pressure Center |
| 4A230C-08 | 1/4" | 5/3 way | Double Air Control Closed Center |
| 4A230E-08 | 1/4" | 5/3 way | Double Air Control Exhaust Center |
| 4A230P-08 | 1/4" | 5/3 way | Double Air Control Pressure Center |
Specification:
| Model | 4A230C-06
4A230E-06
4A230P-06 | 4A230C-08
4A230E-08
4A230P-08 |
| Fluid | Air(to be filtered by 40μm filter element) |
| Acting | Exterior control |
| Port size [Note1] | In=Out=Exhaust=1/8" | In=Out=1/4" Exhaust=1/8" |
Orifice size(Cv)
[Note4] | 4A210-08,4A220-08:17.0mm²(Cv=1.0)
4A230C-08:13.6mm²(Cv=0.8) |
| Valve type | 5 port 3 position | 5 port 3 position |
| Operating pressure | 0.15~0.8MPa(21~114psi) |
| Proof pressure | 1.2MPa(175psi) |
| Temperature | -20~70℃ |
| Material of body | Aluminum alloy |
| Lubrication [Note2] | Not required |
| Max. frequency [Note3] | 3 cycle/sec | 3 cycle/sec |
| Weight (g) | 365 | 365 |
[Note1] PT thread, G thread and NPT thread are available.
[Note2] Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended.
[Note3] The maximum actuation frequency is in the no-load state.
[Note4] Equivalent orifice S and Cv are all calculated from the flow rate data.
Flow Chart:
Structure:

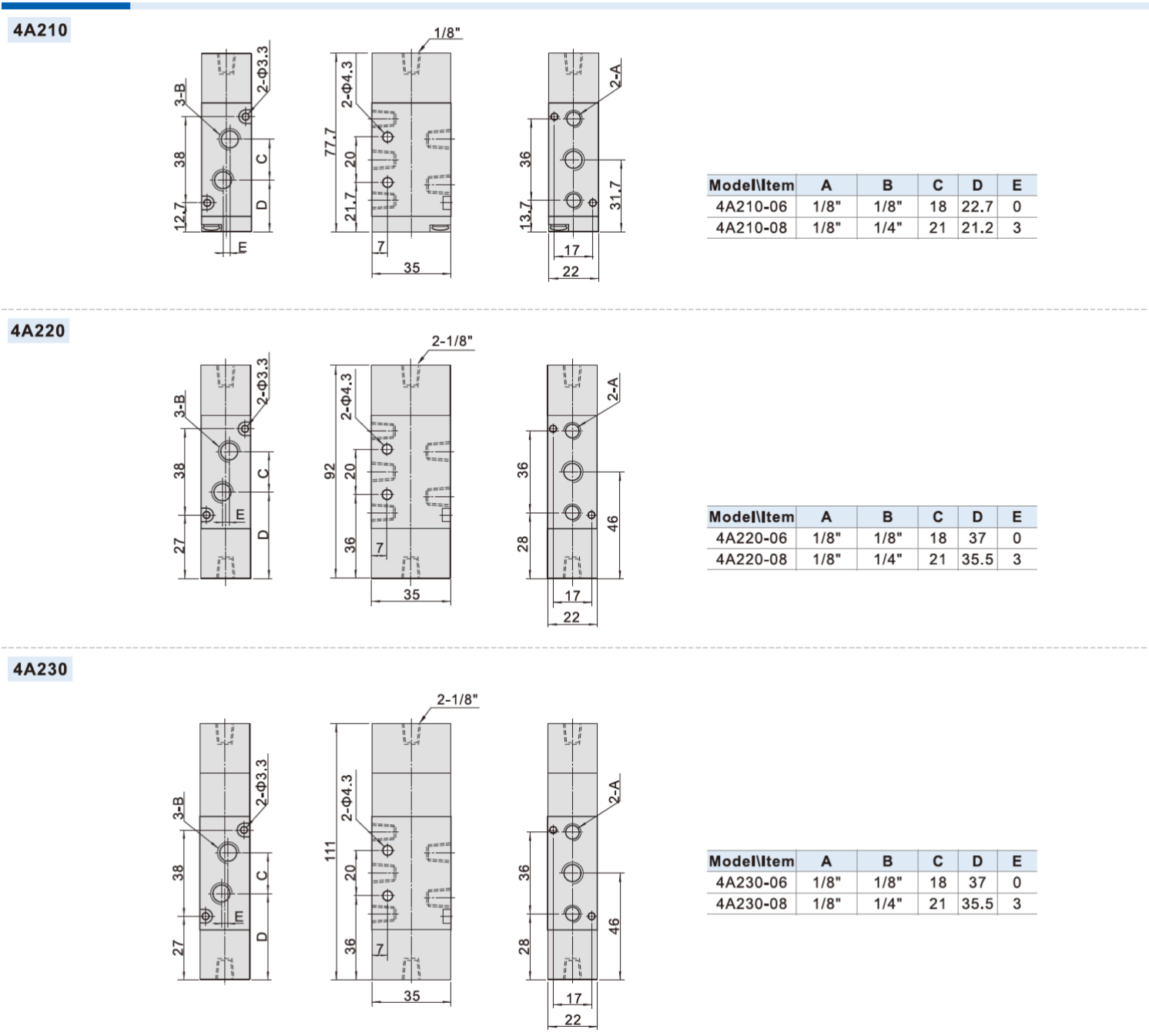

Dimensions:
Quality Standards:
